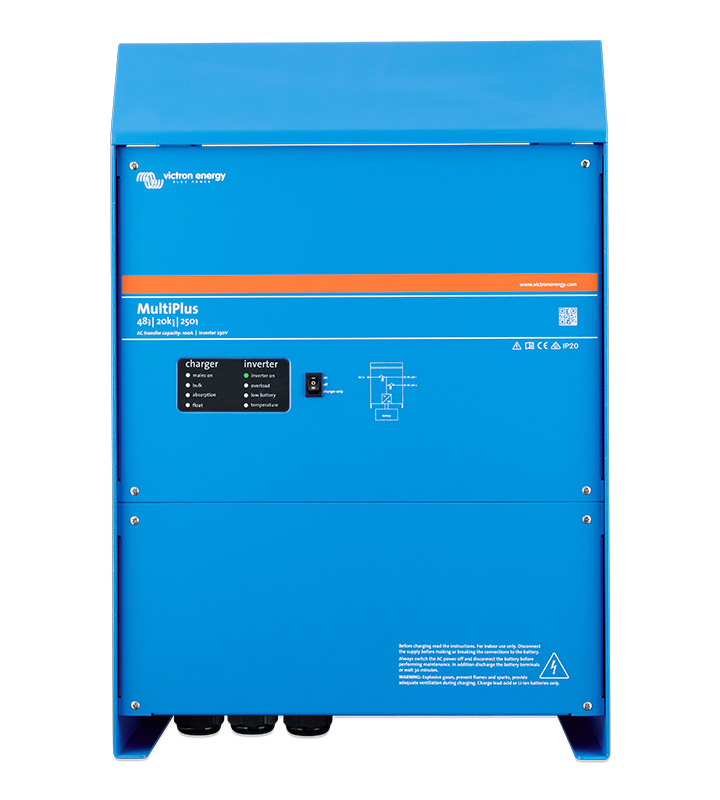

MultiPlus 48/20k/250-100 230V
Art.-Nr. PMC483200400
3,108.96 €
3,657.60 €
· −15 %
inkl. MwSt., zzgl. Versandkosten
local_shippingAuf Anfrage · Versand Österreich & DE, EU auf Anfrage
verifiedAutorisierter Victron Energy Distributor für Österreich
support_agentTechnische Beratung: +43 3124 21818
Beschreibung
Der MultiPlus 48/20k bietet eine dauerhafte Leistung von 20kW bei 25°C und eine Spitzenleistung von 32kW.
Spezifikationen
| Hersteller | Victron Energy |
|---|---|
| Batteriespannung (nominal) | 48 V |
| PowerControl | Ja |
| PowerAssist | Ja |
| Parallelbetrieb | Ja |
| Dreiphasenbetrieb | Ja |
| Anzahl AC-Eingänge | 1 |
| AC Input Voltage Range 1 | [187, 265] VAC |
| Frequency Select | 50Hz |
| Umschaltstrom | 100 A |
| Max. AC-Eingangsstrom | 100 A |
| DC-Eingangsspannungsbereich | [38, 60] VDC |
| AC-Ausgangsspannung | 230 VAC |
| AC-Ausgangsfrequenz | 50 Hz |
| Kurzbezeichnung | 20kW |
| Dauerleistung bei 25 °C (W) | 20,000 W |
| Dauerleistung bei 40 °C (W) | 18,000 W |
| Dauerleistung bei 65 °C (W) | 14,000 W |
| Spitzenleistung | 25,000 W |
| Max App Feedin Power | 20,000 W |
| Max. Wirkungsgrad | 96 % |
| Nulllast-Leistung | 65 W |
| Nulllast-Leistung (AES) | 40 W |
| Nulllast-Leistung (Suchmodus) | 13 W |
| AC-Eingangsspannungsbereich | [187, 265] VAC |
| AC-Eingangsfrequenzbereich | [45, 65] Hz |
| Ladespannung Absorption | 57.6 VDC |
| Ladespannung Erhaltung | 55.2 VDC |
| Ladespannung Lagerung | 52.8 VDC |
| Ladealgorithmus | Adaptive, 4-stage |
| Max. Batterieladestrom | 250 A |
| Temperatursensor | Included |
| Auxiliary Output | Ja |
| External AC Current Sensor | 100A (optional) |
| Programmierbares Relais | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| Schutzfunktionen | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Kommunikationsschnittstelle | VE.Bus |
| Communication Port General | Ja |
| Fernbedienungsanschluss | On / Off |
| Computer Programming | Ja |
| Lüfterunterstützte Kühlung | Ja |
| Max. Luftfeuchtigkeit | 95 % |
| Max. Höhe ü. NN | 2,000 m |
| AC Connection Terminal Type | M6 bolts |
| Batterieanschluss-Typ | M8 bolts (two for positive and two for negative connection) |
| Fernbedienungsanschluss-Typ | Screw terminal two pole |
| Relais-Anschluss | Screw terminal 3-pole |
| VE.Bus-Anschluss-Typ | Two RJ45 terminals |
| Material | Aluminium |
| Farbe | Blue (RAL 5012) |
| Schutzart | IP20 |
| Gewicht | 80 kg |
| Höhe | 616 mm |
| Breite | 422 mm |
| Tiefe | 357 mm |
| Sicherheit | EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1 |
| Emission / Störfestigkeit | EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
| Anti Islanding Standard | Please consult the certificates on our website |
| Ups Standard | Please consult the certificates on our website |
